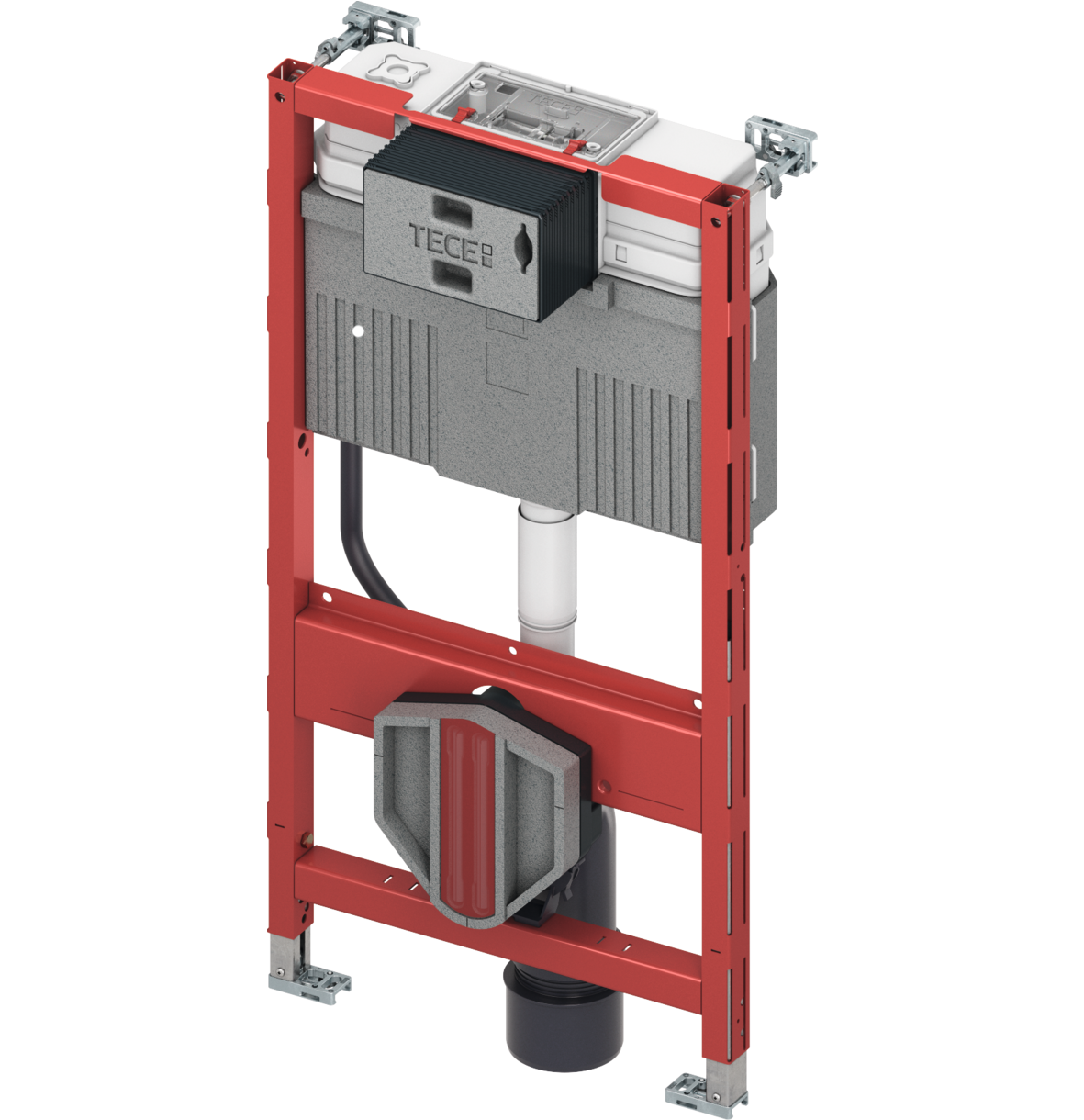

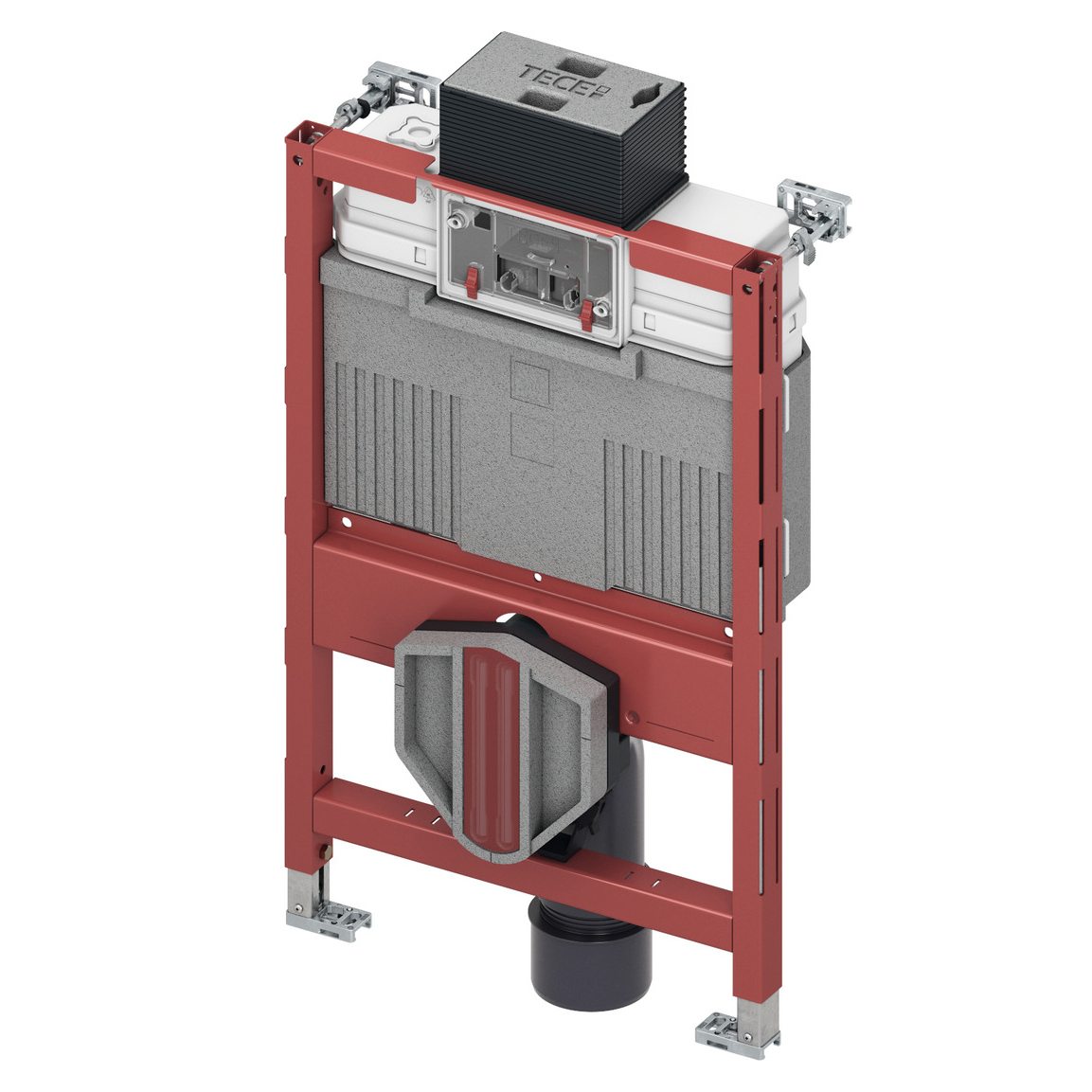

Module Wc Teceprofil Avec Reservoir Uni 2.0, Hauteur 820 Mm

Module WC avec montage de plaque de commande “easy fit” and conduit to connect electronic shower toilets. For attaching to TECEprofil section tubes or as pre-wall or corner modules.

Uni cistern for front or top actuation:

• Safety tank made of impact-resistant plastic, tested to EN 14055
• Réservoir entièrement pré-assemblé and sealed.
• Cistern connection with outer thread R 1/2″ at the side, compatible with quick adapters
• 10 litre tank volume; 6 litre pre-set standard flush volume, 4.5/7.5/9-litre flush volume can be set at any time; 3-litre partial flush volume for dual-flush system; remaining volume can be used for immediate cleaning flush.
• Insulated against condensation water.
• For TECE plaque de commandes and toilet flush handle
• Can be used as a single or dual-flush cistern
• “easy fit” plaque de commande installation  Installation tunnel for service opening, can be shortened without tools
• Low-noise hydraulic filling valve, fitting group 1 according to DIN 4109

Module frame:

• Self-supporting, powder-coated
• Two M 12 retaining bolts and nuts
• Toilet drain bend DN 90 with joint adapter DN 90/100, made of PP
• Joint adapter also suitable for horizontal installation
• Toilet connection set DN 90 WC connection box including shell protection and conduit for universal shower WC connection (check position), with junction box and cover for transformer.
