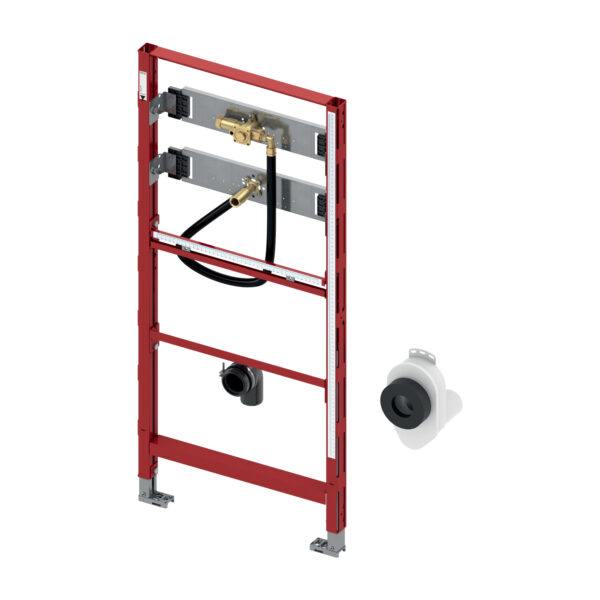

Module urinoir to accommodate manual and electronic actuation systems. Suitable for mounting to TECEprofil section tubes, ou pour installation dans des cloisons à ossature métallique ou bois, as a pre-wall or corner module.
Completely pre-assembled unit, consisting of:
- TECE urinal flush valve housing U 1 with inlet flow control and bare-wall protection system
- Connection Rp 1/2″
- Two adjustable foot supports for floor projections 0–200 mm
- Two M8 retaining bolts
- Continuously adjustable fixing rails
- Continuously height-adjustable drain connection
- Connection elbow DN 50 including protective plugs
- Mounting material for urinal
- Inlet fitting 1/2″
- Flush-mounted siphon
Please order separately:
- Manual actuation or electronic actuation (TECEsquare, TECEloop, TECEsolid, TECEplanus urinal electronic and TECEnow)
- Attachment for individual pre-wall, corner or wooden stud wall assembly
Downloads & Documents
| 9320308-installation-manual | Download PDF |
| 9320308-technical-drawing | Download PDF |
| TECE reservoirs – Belgaqua-certificate tem 051230 | Download PDF |
| EAN | 4027255048836 |
|---|
