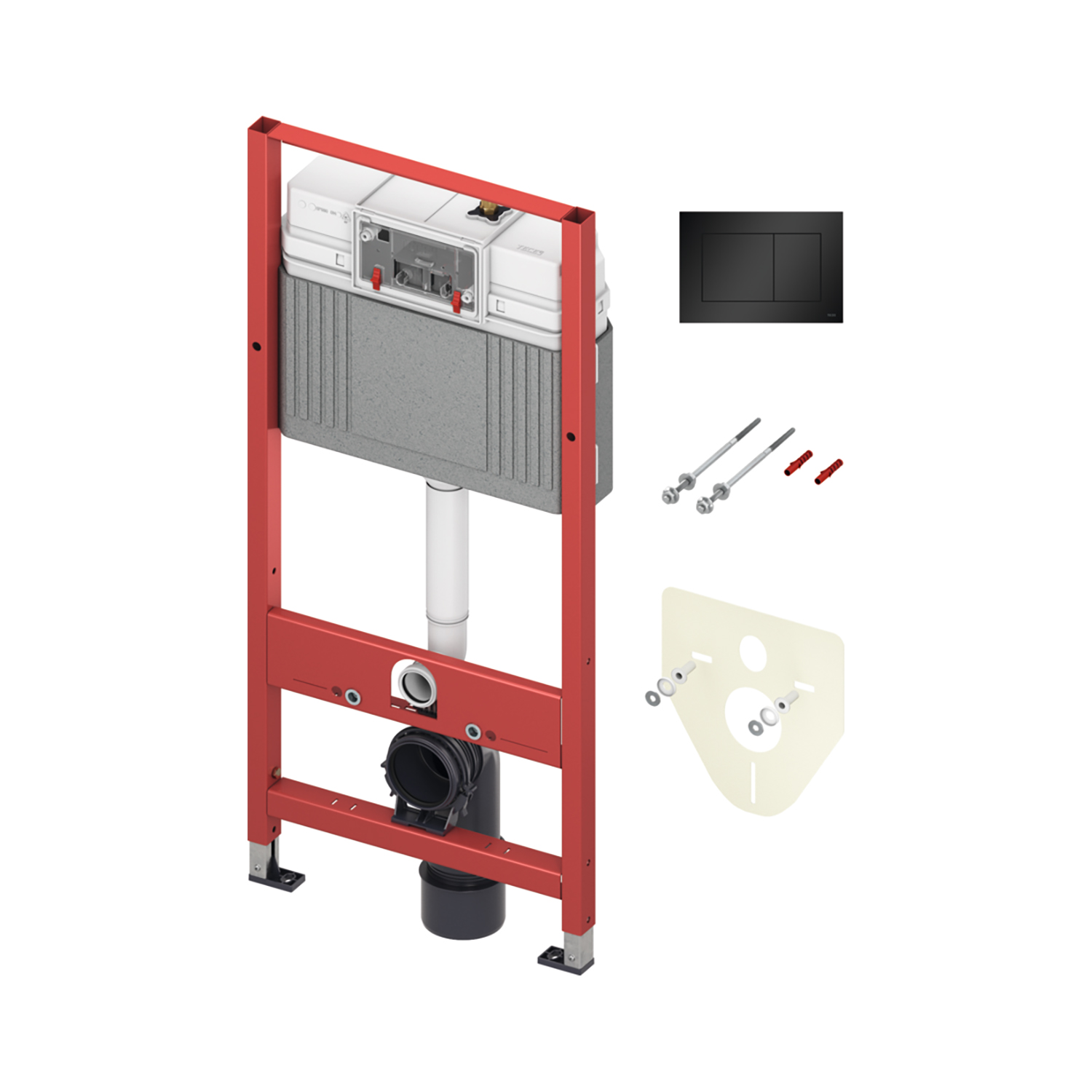

TECEBASE WC CONCEALED FRAME WITH CISTERN + TECENOW plaque de commande MATTE BLACK

UGS : 9400414

12 People watching this product now!

Expédition rapide

Informations sur le transporteur

5k produits

Modes de paiement

24/7 Assistance

Assistance illimitée

Livraison en 2 jours

Suivre ou annuler les commandes

Informations complémentaires
Poids

11325

Matériel

Metal, Plastic

Height

1120

Largeur

500

Couleur

Red

Series

Height (mm)

Width (mm)

Depth (mm)

Weight (g)

Avis (0)
0 reviews
0
0
0
0
0

Il n’y a pas encore d’avis.

Soyez le premier à laisser votre avis sur “TECEBASE WC CONCEALED FRAME WITH CISTERN + TECENOW plaque de commande MATTE BLACK”

Votre adresse e-mail ne sera pas publiée. Les champs obligatoires sont indiqués avec *

Description

WC module equipped for installation of an “easy fit” plaque de commande.
For single-block installation, suitable as an on-wall module in front of load-bearing walls
and for installation in metal or wooden stud walls.

Base cistern for front actuation:

  • Réservoir de sécurité en plastique résistant aux chocs, tested in accordance with EN 14055
  • Réservoir entièrement pré-assemblé
  • Raccordement du réservoir avec filetage extérieur R 1/2″ on top, compatible with quick connectors
  • 3-way angle valve; shut-off valve with flushing function and installed fill valve
  • 10-litre cistern volume; standard flush volume preset to 6 litres;
    flush volume of 4.5 / 7.5 / 9 litres adjustable at any time;
    3-litre reduced flush volume with dual flush system.
    The remaining water can be used for immediate after-flushing.
  • Insulated against condensation
  • “Easy fit” plaque de commande installation
  • Low-noise hydraulic fill valve, fitting group 1 in accordance with DIN 4109

Module frame:

  • Self-supporting, powder-coated
  • Two fixing bolts M12 with nuts
  • Fixing set for load-bearing walls
  • WC drain bend DN 90, incl. PP adapter DN 90/100
  • Adapter also suitable for horizontal installation
  • WC connection set DN 90 with construction protection plug
  • WC sound insulation set
  • TECEnow dual-flush actuator plate, matte black

Please order separately:

  • Insertion shaft for cleaning tablets (optional)
  • TECE upgrade set for TECE shower toilets, dry construction (optional)

Note:
When using Céramique WC bowls with a small support surface
(= distance from the centre of the fixing bolts to the lower edge of the support surface not exceeding 18 cm),
e.g. Villeroy & Boch Memento, Sentique, Subway 2.0,
installation of the steel reinforcement set 9041029 is required
in the lower installation area.

Downloads & Documents

9400414-installation-manual-NL-FR-ENG Download PDF
9400414-technical-drawing Download PDF
TECE reservoirs – Belgaqua-certificate tem 051230 Download PDF
