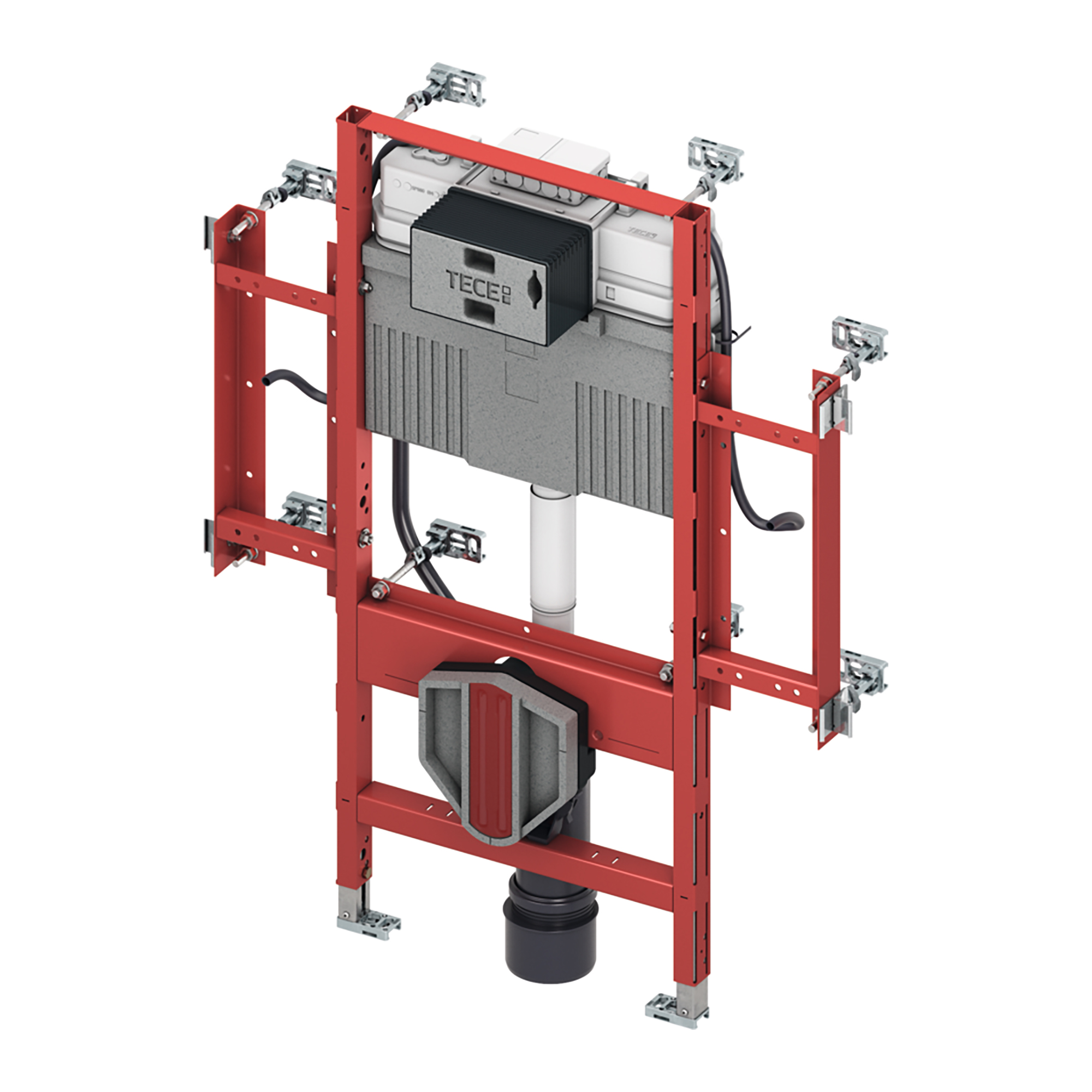

Teceprofil Wc-Gerontomodule – Met Uni-Spoelkast – Keramiekbevestiging – Voor 48 Cm Zithoogte

Toilet module including “easy fit” plaque de commande installation and a conduit
for connecting electronic shower toilets. Suitable for attachment to TECEprofil section
tubes, for flush-mounted profile walls or installation in front of a solid wall.
Designed for barrier-free construction with raised Céramique attachment. Module with
lateral steel frames and conduits for cable laying, including matériel de fixation.

Safety support arm height: 760 mm

Uni cistern for front actuation:

• Safety tank made of impact-resistant plastic, tested to EN 14055
• Réservoir entièrement pré-assemblé and sealed
• Raccordement du réservoir avec filetage extérieur R 1/2″ at the side, compatible with quick adapters
• 10 litre tank volume; 6 litre pre-set standard flush volume;
  4.5 / 7.5 / 9 litre volume de chasse réglable at any time; 3 litre partial
  flush volume for dual-flush systems; remaining volume available for immediate
  cleaning flush
• Insulated against condensation water
• For TECE plaque de commandes and toilet electronics
• Can be used as a single- or dual-flush cistern
• “Easy fit” plaque de commande installation
• Installation tunnel for service opening, can be shortened without tools
• Low-noise hydraulic filling valve, fitting group 1 according to DIN 4109
• Flush flow control adjustable without removing the drain valve

Module frame:

• Self-supporting, powder-coated frame
• Two adjustable floor supports for floor projections of 0–200 mm
• Two M 12 retaining bolts and nuts
• Eight depth-adjustable module attachments
• Four multi-clips for attachment to a TECEprofil wall
• Lateral steel frames to hold steel plate sets
• Toilet drain bend DN 90 including joint adapter DN 90/100 made of PP
• Joint adapter also suitable for horizontal installation
• Toilet connection set DN 90
• WC connection box including shell protection and conduit for universal shower WC
  connection (check position), with junction box and transformer cover
