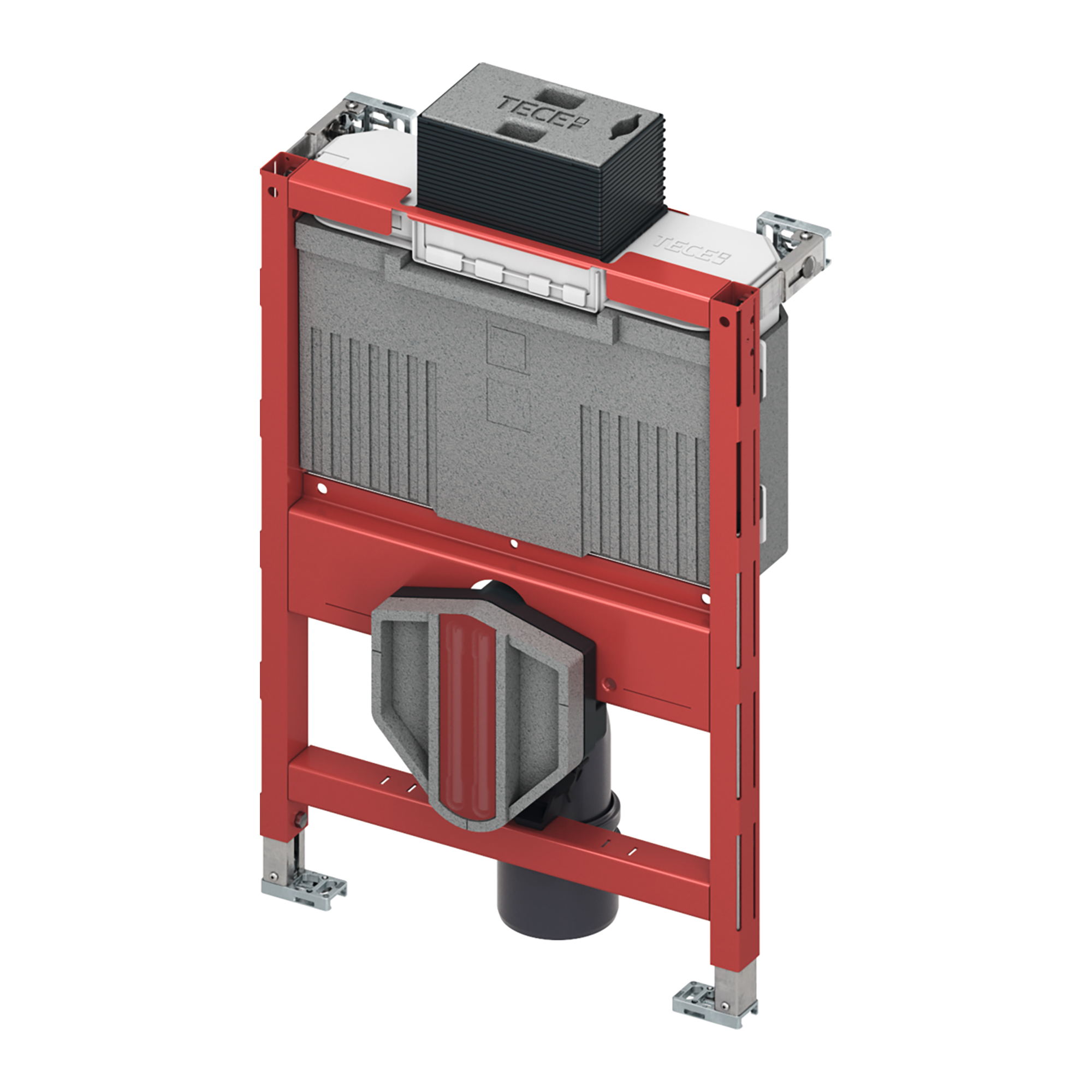

Teceprofil Wc-Inbouwframe Met Uni 750-Spoelkast – Bouwhoogte 750 Mm

Toilet module including “easy fit” plaque de commande assembly. Suitable for
fitting to TECEprofil section tubes or for installation in metal or wooden stud-and-beam
walls, as well as for pre-wall or corner installation. Also suitable for single block
assembly.

Uni 750 cistern for actuation from above:

• Safety tank made of impact-resistant plastic, tested according to EN 14055
• Réservoir entièrement pré-assemblé and sealed
• Raccordement du réservoir avec filetage extérieur R 1/2″ on the side, compatible with quick adapters
• 8-litre tank volume; 6-litre pre-set standard flush volume; 4.5-litre flush volume
  adjustable at any time; 3-litre partial flush volume for dual flush; residual volume
  available for immediate cleaning flush
• Insulated against condensation water
• Compatible with TECE plaque de commandes and toilet flush handle
• Can be used as a single-flush or dual-flush cistern
• “Easy fit” plaque de commande mounting
• Installation tunnel for service opening, can be shortened without tools
• Low-noise hydraulic filling valve, acoustic group 1 according to DIN 4109

Module frame:

• Self-supporting, powder-coated frame
• Two M 12 retaining bolts and nuts
• Toilet drain bend DN 90, including joint adapter DN 90/100 made of PP
• Joint adapter also suitable for horizontal installation
• Toilet connection set DN 90
• WC connection box including bare-wall protection with junction box
