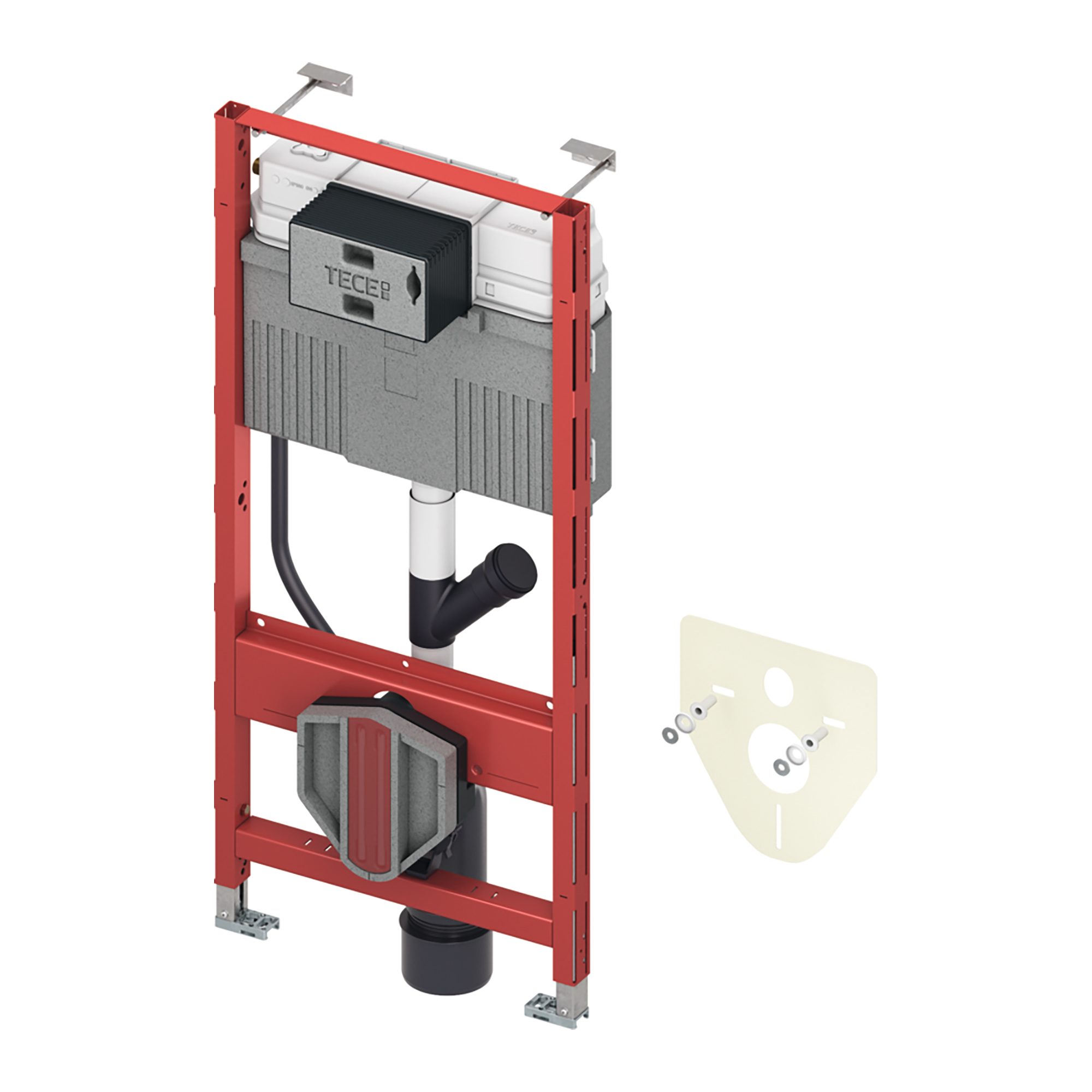

Teceprofil Wc-Inbouwframe Met Uni-Spoelkast – Met Aansluiting Voor Geurafzuigimg (Dn 50) – Bouwhoogte 1120 Mm

Toilet module including “easy fit” plaque de commande installation and a conduit
for connecting electronic shower toilets. Suitable for fitting to TECEprofil section
tubes ou pour installation dans des cloisons à ossature métallique ou bois, as well as for pre-wall or
corner installation. Also suitable for single block assembly.

Uni cistern for front actuation:

• Safety tank made of impact-resistant plastic, tested to EN 14055
• Réservoir entièrement pré-assemblé and sealed
• Raccordement du réservoir avec filetage extérieur R 1/2″ at the side, compatible with quick adapters
• 10 litre tank volume; 6 litre pre-set standard flush volume;
  4.5 / 7.5 / 9 litre volume de chasse réglable at any time; 3 litre partial
  flush for dual-flush systems; remaining volume available for immediate cleaning flush
• Insulated against condensation water
• For TECE plaque de commandes and toilet flush handle
• Can be used as a single- or dual-flush cistern
• “Easy fit” plaque de commande installation
• Installation tunnel for service opening, can be shortened without tools
• Low-noise hydraulic filling valve, fitting group 1 according to DIN 4109
• Connection for odour extraction DN 50 (matching fan e.g. Maico ER 100)
• Flush flow control adjustable without removing the drain valve

Module frame:

• Self-supporting, powder-coated frame
• Two M 12 retaining bolts and nuts
• Toilet drain bend DN 90 including joint adapter DN 90/100 made of PP
• Joint adapter also suitable for horizontal installation
• Toilet connection set DN 90
• WC connection box including shell protection and conduit for universal shower WC
  connection (check position), with junction box and transformer cover

A raised Céramique attachment for a sitting height of 48 cm can be added in accordance
with DIN 18040 (Barrier-free construction – Part 1).
