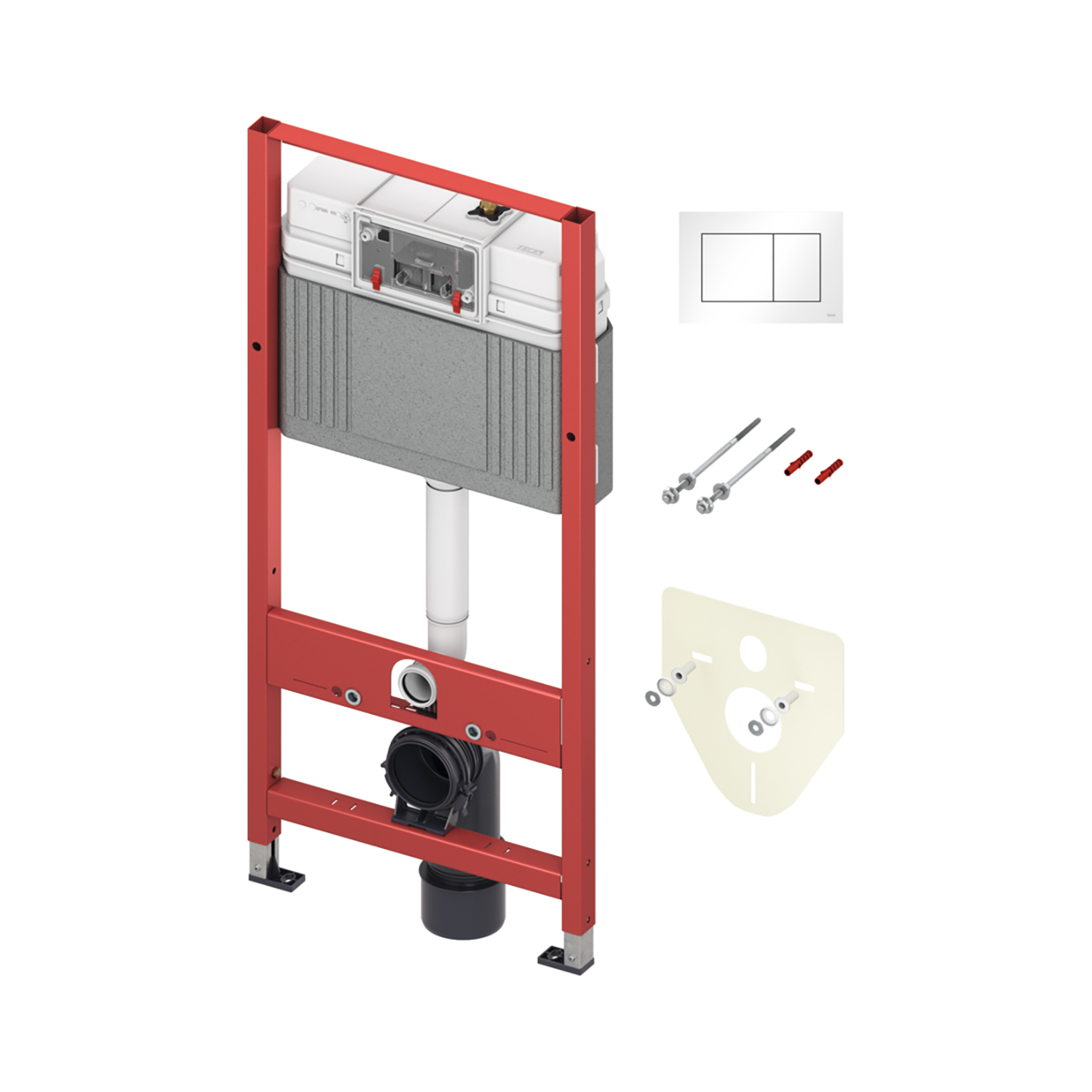

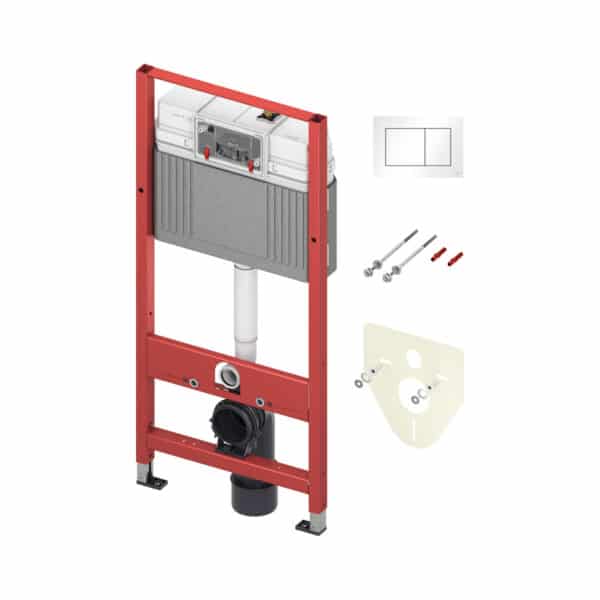

TECEBASE WC CONCEALED FRAME WITH CISTERN + TECENOW FLUSH PLATE WHITE

WC module equipped for installation of an “easy fit” flush plate.
For single-block installation, suitable as an on-wall module in front of load-bearing walls
and for installation in metal or wooden stud walls.

Base cistern for front actuation:

• Safety cistern made of impact-resistant plastic, tested in accordance with EN 14055
• Cistern fully pre-assembled
• Cistern connection with external thread R 1/2″ on top, compatible with quick connectors
• 3-way angle valve; shut-off valve with flushing function and installed fill valve
• 10-litre cistern volume; standard flush volume preset to 6 litres;
  flush volume of 4.5 / 7.5 / 9 litres adjustable at any time;
  3-litre reduced flush volume with dual flush system.
  The remaining water can be used for immediate after-flushing.
• Insulated against condensation
• “Easy fit” flush plate installation
• Low-noise hydraulic fill valve, fitting group 1 in accordance with DIN 4109

Module frame:

• Self-supporting, powder-coated
• Two fixing bolts M12 with nuts
• Fixing set for load-bearing walls
• WC drain bend DN 90, incl. PP adapter DN 90/100
• Adapter also suitable for horizontal installation
• WC connection set DN 90 with construction protection plug
• WC sound insulation set
• TECEnow dual-flush actuator plate, white

Please order separately:

• Insertion shaft for cleaning tablets (optional)
• TECE installation kit for TECE shower toilets, dry construction (optional)

Note:
When using ceramic WC bowls with a small support surface
(= distance from the centre of the fixing bolts to the lower edge of the support surface not exceeding 18 cm),
e.g. Villeroy & Boch Memento, Sentique, Subway 2.0,
installation of the steel reinforcement set 9041029 is required
in the lower installation area.
